Commanding Components Takes More Than Reading Codes
Bidirectional control lets a scanner send commands to vehicle components through the diagnostic connection. Innova names fuel pumps and cooling fans as examples. XTOOL adds injectors, ABS pumps and A/C clutches, while TOPDON includes door locks, windows and windshield wipers. Those are concrete actions an owner can request during diagnosis, beyond reading a stored fault code.
The important distinction is between general vehicle compatibility and support for a particular command. Innova directs owners to its Coverage Checker. GEARWRENCH's GWSMART07 manual says available special functions can change with the model, system, year and ECU type. An OBD2 connection alone therefore does not promise every actuator test. Check the intended function for the exact vehicle, and follow the tool's required test conditions. Protected networks introduce another requirement: GEARWRENCH specifies proper authentication for the GWSMART05, while XTOOL identifies an optional FCA gateway bypass cable.
The order follows included software update terms: ongoing free updates first, then two years, then the two tools listing three years. The GWSMART07 comes last within that pair because its page gives conflicting update terms.
XTOOL's and GEARWRENCH's manuals say to ventilate the work area, keep the device away from heat and fumes, avoid battery acid and keep fire away from batteries. Avoid hot engine, cooling and exhaust parts. Securely park the vehicle and select Neutral, P or N as applicable before starting. Check the diagnostic connector, and do not disconnect power or connectors during testing because ECU or tool damage can result. For brake bleeding, GEARWRENCH also says to secure the hose and open bleeder screws slowly because fluid is under pressure.

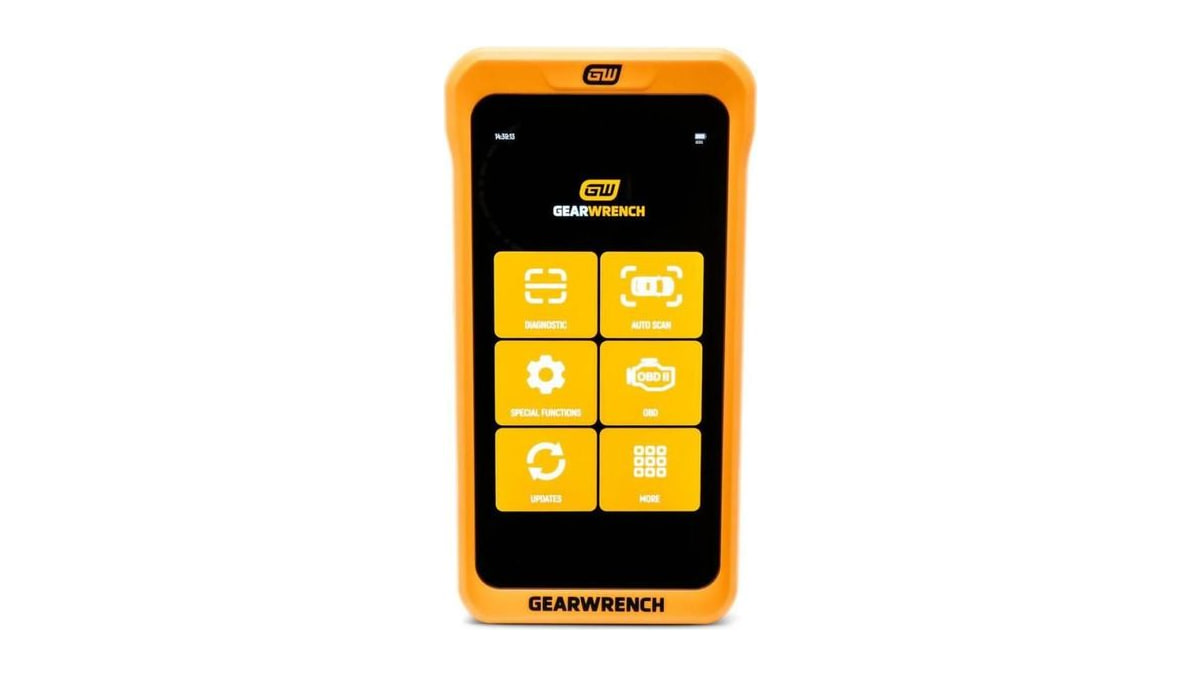

GEARWRENCH GWSMART05 Diagnostic Tool
The GEARWRENCH GWSMART05 Diagnostic Tool is a handheld scanner that commands components, activates actuators and performs system tests directly from the device. Its product page specifies a wired VGA-to-OBDII connection for diagnostic functions, including bidirectional tests. For protected vehicle networks, GEARWRENCH describes the GWSMART05 as AutoAuth/Secure Gateway ready, with proper authentication required to access diagnostics and service functions.
The VGA-to-OBDII cable comes in the package. GEARWRENCH also includes lifetime free software updates without annual fees or subscription costs. Its manual says to activate the device, then download the needed software modules from the Updates screen over the Internet. The manual specifies a vehicle voltage range of +9V to +36V DC. If a vehicle or electronic control system is missing from the diagnostic menu, it directs owners to update the software or contact GEARWRENCH technical service.

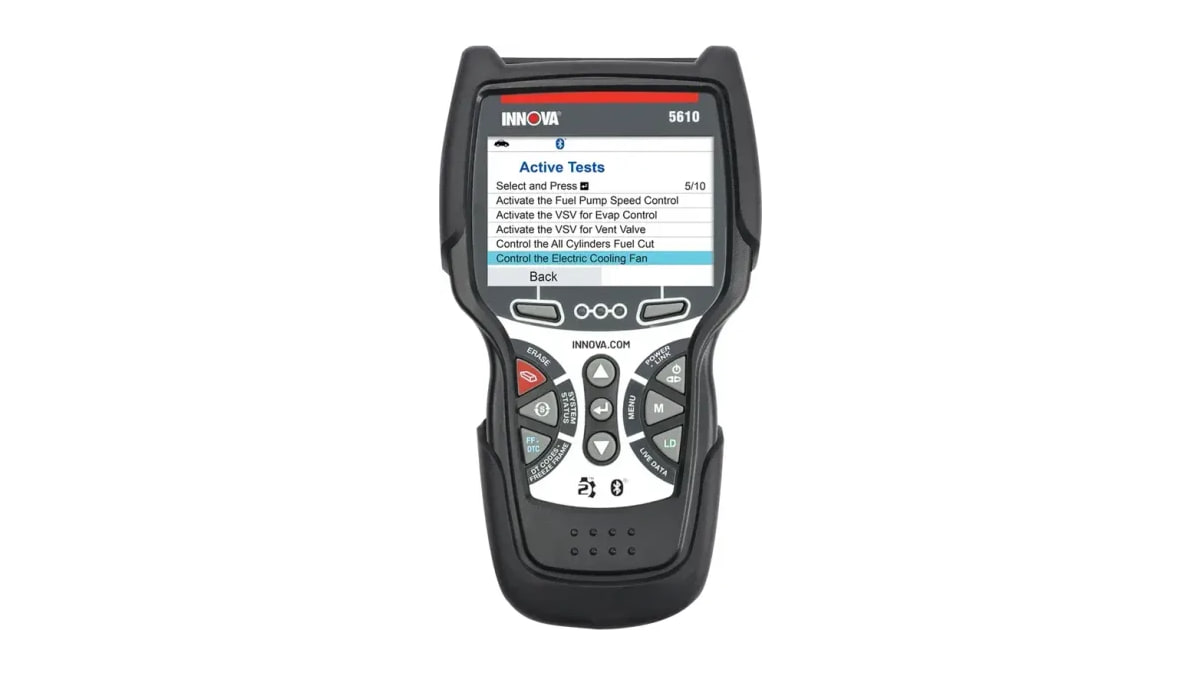

Innova 5610
The Innova 5610 is a scanner with bidirectional active tests that send commands to components such as fuel pumps and cooling fans. Innova's product page directs owners to its Coverage Checker to look up supported features. The company also restricts its recommendation to vehicles sold and operated in the United States or Canada, citing regional OBD protocols and compliance standards.
The 5610 powers from the vehicle or optional internal batteries. OBD1 coverage requires an OBD1 connector. Updates are free, there are no subscriptions, and the RepairSolutions2 app is optional. Innova's FCA access statement is dated July 2025: it says access was unavailable then and describes plans for a free release in late 2025 or early 2026, limited to the latest 5610 versions. That announcement describes a planned release rather than current availability.

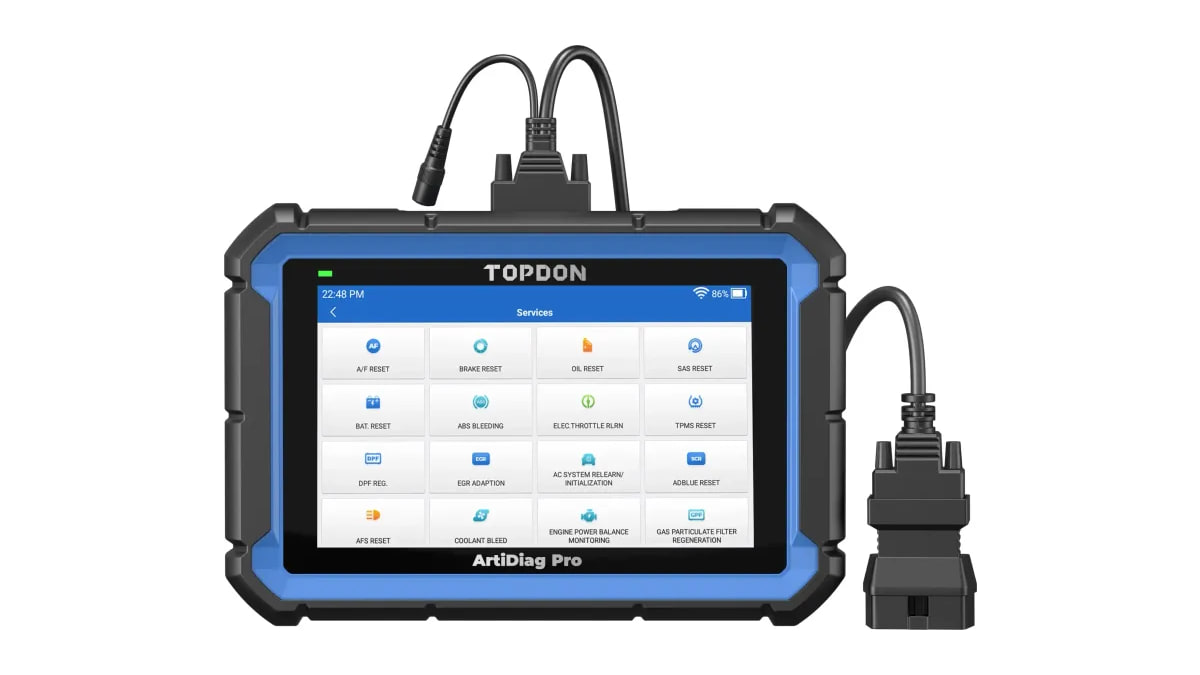

TOPDON ArtiDiag Pro
The TOPDON ArtiDiag Pro is a diagnostic tablet that drives actuators within vehicle-specific subsystems. TOPDON names lights, door locks, fuel injectors, fuel pumps, coolant pumps, windows, windshield wipers and EVAP among its component and system examples. That gives owners several specific functions to look up in TOPDON's Vehicle Coverage Tool before choosing it for a particular job. The ArtiDiag Pro also has a Combine function that displays up to four data streams graphically on one interface. TOPDON lists online coding for VW, Audi, Skoda, Seat, Porsche, BMW and Mini, plus a guided function for VW.
The package includes the ArtiDiag Pro tablet, diagnostic cable, Type-C to USB cable, power adapter, user manual, quick user guide, carrying case and packing box. Two years of updates are included, with an annual renewal offered afterward.

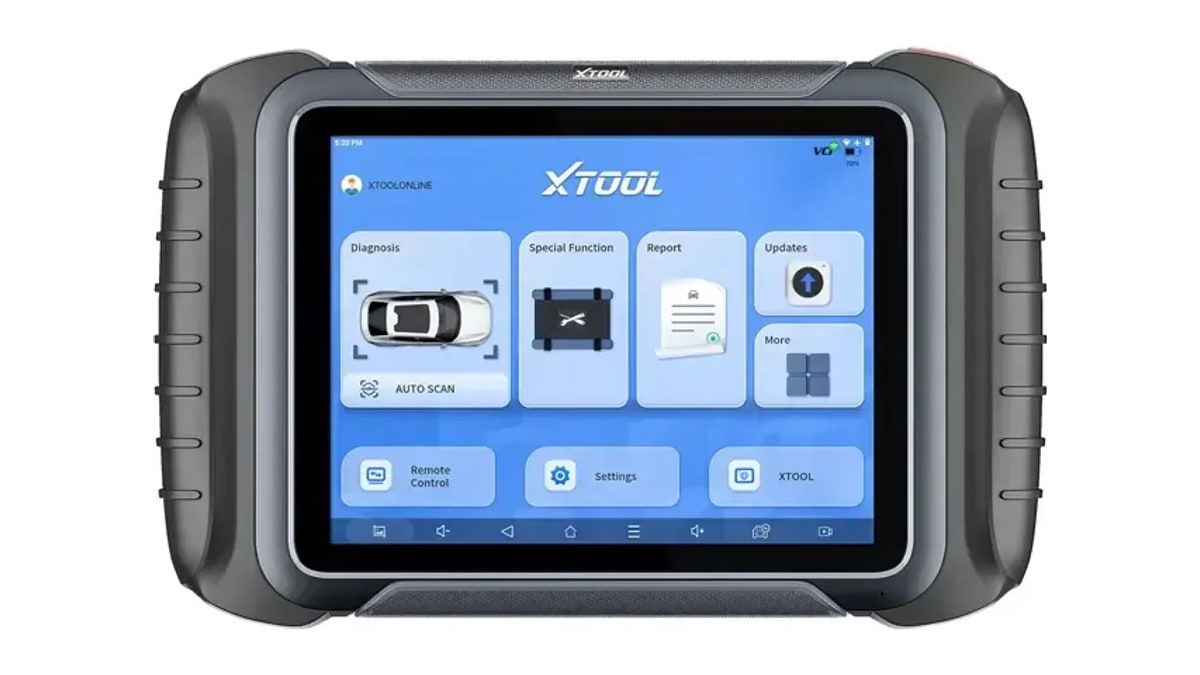

XTOOL D8S
The XTOOL D8S is a diagnostic tablet with bidirectional control for components including cooling fans, injectors, ABS pumps and A/C clutches. XTOOL says these active tests operate without using the vehicle's controls. Its manual requires connection to the vehicle's OBD-II port to establish communication and specifies a vehicle voltage range of +9 to +18V DC. The product page also lists CAN FD and DoIP support, plus FCA gateway bypass with an optional cable. XTOOL's specification table also flags VAG Guidance as suspended in the US and asks owners to stay tuned for a restart date.
XTOOL's packing list groups the tablet, a Type-C to Type-C data cable, a Type-C to Type-A adapter, EU and UK charging adapters, a PD power supply, a test connector and the VGA-to-OBD-II main cable under Main Units. Its accessory list includes a carton, tool case, packing list, certificate of quality and quick start guide. The FCA bypass cable is identified separately as optional. Three years of free upgrades are included, delivered online through Wi-Fi. For a vehicle or electronic control system absent from the diagnostic menu, XTOOL's manual directs owners to update the diagnostic software or consult technical service.

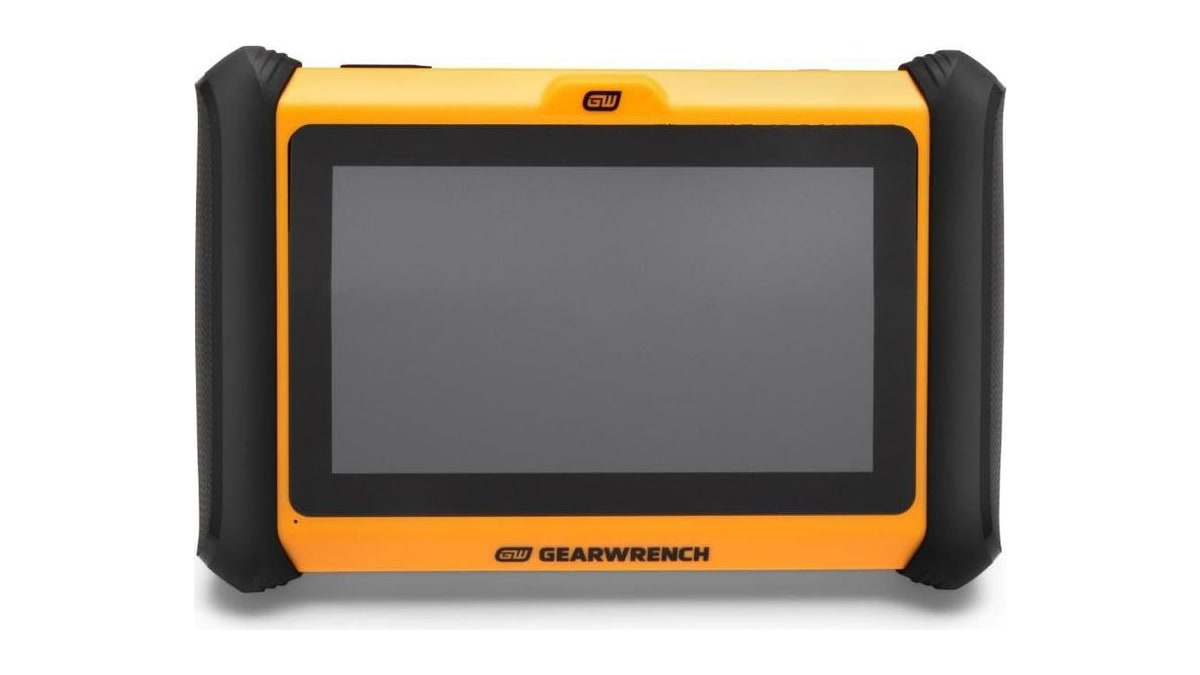

GEARWRENCH GWSMART07 Diagnostic Tablet
The GEARWRENCH GWSMART07 Diagnostic Tablet supports what GEARWRENCH calls full bidirectional control and live actuation testing. Its manual instructs owners to insert the VCI box into the vehicle's OBD-II port and verify that its power indicator illuminates. For a specific service-function limitation, the manual says some vehicles require manual brake bleeding because they do not support automatic bleeding. GEARWRENCH's manual cautions that brake fluid is under pressure during this process, and says to secure the bleed hose and open bleeder screws slowly.
GEARWRENCH says the GWSMART07 comes with a blow molded case. GEARWRENCH's specifications list three years of free software updates, with a yearly charge after the third year. The page's feature list separately claims four years. Setup involves connecting to Wi-Fi and proceeding to the activation page, according to its manual. Owners can register a new GEARWRENCH Diagnostics account or sign in to an existing one. The manual also offers a Trial option that skips that step, but warns that trial functionality is limited. If the vehicle or electronic control system is unavailable in the diagnostic menu, it directs owners to update the software or contact technical service.
Methodology
Each scanner qualifies because its maker explicitly describes bidirectional control, active testing or actuator commands through the vehicle diagnostic connection. Product facts come from each maker's own product page and, where available, its manual. The maker's product page appears as the source under every entry. Manual-based instructions are attributed directly. Selection focuses on component commands, connection requirements, included equipment, software access and specific compatibility restrictions.
The order follows included update terms: ongoing free updates, then two years, then the two tools listing three years. The GWSMART07 closes that pair because its page gives conflicting update terms. Performance rankings and unsupported claims about vehicle coverage are excluded. A maker's general compatibility statement is kept separate from its support for an individual diagnostic function.
